| Dimensions | 7 × 36 in |
|---|
GATEWAY3G 7ft
$721.32
FREE Delivery within 40 miles of Hickory, NC!
Featuring a seamless, slip-resistant surface, GATEWAY™ 3G Solid Surface Portable Ramps without handrails are the ideal solution when mobility needs extend beyond the scope of a conventional portable ramp. Perfect for temporary or semi-permanent home access, the GATEWAY 3G can be easily moved or relocated as needs change. Designed for the rigors of repeated, everyday use in all weather conditions and is ideal for scooters, wheelchairs, and walkers.
Features
Lightweight, Heavy-duty Aluminum:
More durable than wood, the GATEWAY 3G is designed for years of maintenance-free use. It will not rust or rot from the outdoor elements, allowing you to use the ramp repeatedly without worrying about deterioration.Slip-resistant Surface:
Designed with a permanent, extruded slip-resistant surface.
Self-adjusting Ground Transition Plate:
To make the conversion from ramp to ground smooth on most surface types, the GATEWAY 3G Solid Surface Portable Ramp offers a self-adjusting ground transition plate.Made in the USA and carries a lifetime warranty.
Specs
GATEWAY3G 03 / 03TL / 03VP
GATEWAY3G 04 / 04TL / 04VP
GATEWAY3G 05 / 04TL / 04VP
GATEWAY3G 06 / 06TL / 06VP
GATEWAY3G 07 / 07TL / 07VP
GATEWAY3G 08 / 08TL / 08VP
GATEWAY3G 09 / 09TL / 09VP
GATEWAY3G 10 / 10TL / 10VP
Usable Size (L X W X H)
3′ x 36″ x (34.5″)
4′ x 36″ x (34.5″)
5′ x 36″ x (34.5″)
6′ x 36″ x (34.5″)
7′ x 36″ x (34.5″)
8′ x 36″ x (34.5″)
9′ x 36″ x (34.5″)
10′ x 36″ x (34.5″)
Overall Size (L X W X H)
3′ x 41.75″ x (36″)
4′ x 41.75″ x (36″)
5′ x 41.75″ x (36″)
6′ x 41.75″ x (36″)
7′ x 41.75″ x (36″)
8′ x 41.75″ x (36″)
9′ x 41.75″ x (36″)
10′ x 41.75″ x (36″)
Accommodates Heights Up To
4″
6″
7″
9″
10″
12″
13″
15″
Weight
44 lbs.
52 lbs.
60 lbs.
68 lbs.
74 lbs.
82 lbs.
96 lbs.
106 lbs.
Weight Capacity
1,000 lbs.
1,000 lbs.
1,000 lbs.
1,000 lbs.
1,000 lbs.
1,000 lbs.
1,000 lbs.
1,000 lbs.
For Wheelchairs & Scooters
✓
✓
✓
✓
✓
✓
✓
✓
NOTE: Weights and dimensions are approximate and subject to change.
Usable Size and Overall Size Height Applies to only TL and VP Products
For additional specs and dimensions see “Documents”
Documents
Although it’s our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.
Videos
FAQ's
Can you connect multiple ramps together?
No. If you need a ramp longer than 10’, we suggest checking out our PATHWAY® 3G Modular Access System.
What kind of tread is used on these ramps?
Our standard extruded aluminum tread.
Can I get the black applied surface on this ramp?

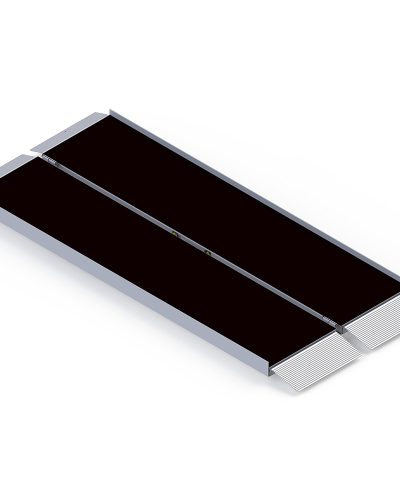

No, it is not available on our GATEWAY™ 3G ramps. If you would like a portable ramp with the applied surface, check out our SUITCASE® Singlefold AS or SUITCASE® Trifold® AS ramps.
Can handrails be purchased separately if a ramp needs handrails later on?
Yes, please contact Customer Service.
How do you keep the ramp from moving?
We recommend securing the ramp to the supporting surface using the provided clevis pins or other appropriate hardware (please refer to instruction manual) through the two pre-drilled holes in the Top Lip Transition Plate and proper hardware.
