| Dimensions | 22.25 × 34 in |
|---|---|
| RISE | TAEP 08, TAEP 10, TAEP 12 |
TMER 4 in
$142.02

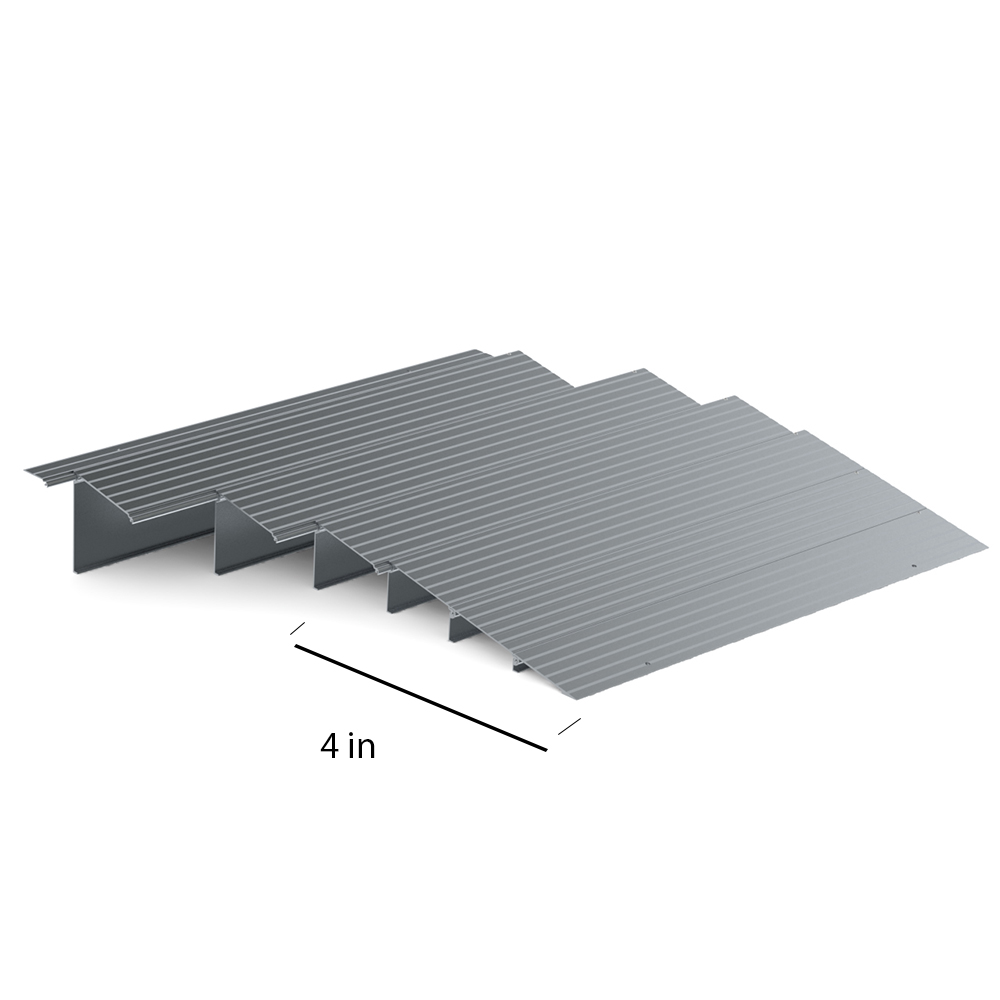

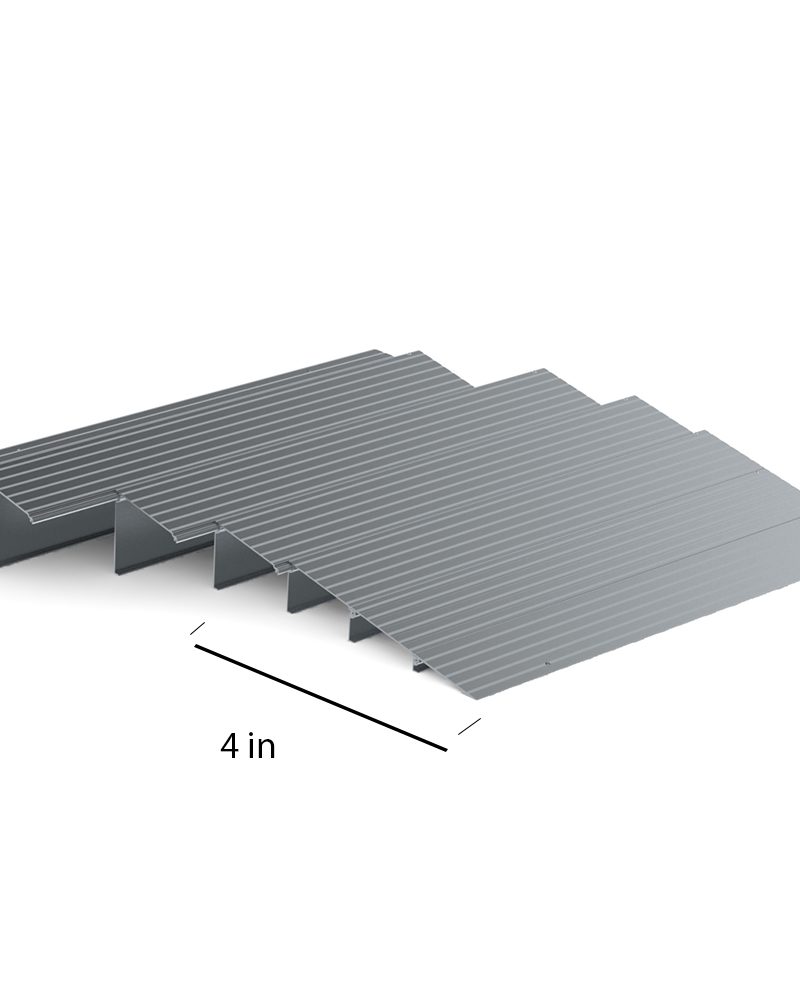

The TRANSITIONS® Modular Entry Ramp is ideal for doorways and raised landings to create a seam-free surface for people who walk with shuffling feet, wheelchairs, scooter, walkers, etc. It is lightweight and includes an attached pivoting flap at the top to provide ¼” of additional adjustability. They Modular Entry Ramps are 34” wide and are available in heights of 1”, 1.5”, 2”, 3”, 4”, 5” and 6”.
Features
QUICK AND EASY SETUP
The Angled Entry Plate installs in minutes. The simple 1-piece design means no assembly or moveable parts; just set the plate in the desired position, and its ready to use.SLIP-RESISTANT SURFACE
Features a superior applied tread for high traction.
HIGH-STRENGTH ALUMINUM
Formed from high-strength aluminum which will not rust or corrode over time.PRE-DRILLED SLOTS
Holes are pre-drilled for anchoring. Hardware included.
Specs
TAEP 08
TAEP 10
TAEP 12
Slip-Resistant Surface
✓
✓
✓
Overall Dimensions (L X W)
8″ x 32″
10″ x 32″
12″ x 32″
Height (Plate Only)
0.695″
0.695″
0.695″
Usable Height*
Up to 1.312″
Up to 1.625″
Up to 2″
Weight Capacity
700 lbs.
700 lbs.
700 lbs.
Weight**
3.5 lbs.
4.25 lbs.
5 lbs.
NOTE: Weights and dimensions are approximate and subject to change.
*Consult your mobility equipment’s owner guide for the proper slope/incline. Never exceed its recommendations.
** Weights are approximate and may vary.
For additional specs and dimensions see “Documents”
Documents
Although it’s our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.
Videos
FAQ's
Is there assembly required?
The plate is a simple, one-piece design with no assembly required.
What is the ideal application?
A fairly small threshold that needs to be converted into a smooth surface to ease the transition through the doorway.
What kind of surface does this have?
The Angled Entry Plate has a black applied tread for high traction.
How do you keep the plate from moving?
Screws are supplied for securing the plate to a wood surface.
Be the first to review “TMER 4 in”
Reviews
There are no reviews yet.
